Generically access model output#

import cf_xarray
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
import xcmocean
import cmocean.cm as cmo
import extract_model as em

<frozen importlib._bootstrap>:219: RuntimeWarning: scipy._lib.messagestream.MessageStream size changed, may indicate binary incompatibility. Expected 56 from C header, got 64 from PyObject

ROMS#

# open an example dataset from xarray's tutorials
ds = xr.tutorial.open_dataset('ROMS_example.nc', chunks={'ocean_time': 1})
# normally could run the `preprocess` code as part of reading in the dataset
# but with the tutorial model output, run it separately:
ds = em.preprocess(ds)
ds

<xarray.Dataset>
Dimensions:     (ocean_time: 2, s_rho: 30, eta_rho: 191, xi_rho: 371)
Coordinates:
    Cs_r        (s_rho) float64 dask.array<chunksize=(30,), meta=np.ndarray>
    lon_rho     (eta_rho, xi_rho) float64 dask.array<chunksize=(191, 371), meta=np.ndarray>
    hc          float64 20.0
    h           (eta_rho, xi_rho) float64 dask.array<chunksize=(191, 371), meta=np.ndarray>
    lat_rho     (eta_rho, xi_rho) float64 dask.array<chunksize=(191, 371), meta=np.ndarray>
    Vtransform  int32 2
  * ocean_time  (ocean_time) datetime64[ns] 2001-08-01 2001-08-08
  * s_rho       (s_rho) float64 -0.9833 -0.95 -0.9167 ... -0.05 -0.01667
  * xi_rho      (xi_rho) int64 0 1 2 3 4 5 6 7 ... 364 365 366 367 368 369 370
  * eta_rho     (eta_rho) int64 0 1 2 3 4 5 6 7 ... 184 185 186 187 188 189 190
    z_rho       (ocean_time, s_rho, eta_rho, xi_rho) float64 dask.array<chunksize=(1, 30, 191, 371), meta=np.ndarray>
Data variables:
    salt        (ocean_time, s_rho, eta_rho, xi_rho) float32 dask.array<chunksize=(1, 30, 191, 371), meta=np.ndarray>
    zeta        (ocean_time, eta_rho, xi_rho) float32 dask.array<chunksize=(1, 191, 371), meta=np.ndarray>
Attributes: (12/34)
    file:              ../output_20yr_obc/2001/ocean_his_0015.nc
    format:            netCDF-4/HDF5 file
    Conventions:       CF-1.4
    type:              ROMS/TOMS history file
    title:             TXLA ROMS hindcast run with dyes and oxygen
    rst_file:          ../output_20yr_obc/2001/ocean_rst.nc
    ...                ...
    compiler_flags:    -heap-arrays -fp-model fast -mt_mpi -ip -O3 -msse2 -free
    tiling:            010x012
    history:           Tue Jul 24 11:04:43 2018: /opt/nco/ncks -D 4 -t 8 /cop...
    ana_file:          /home/d.kobashi/TXLA_ROMS_reana/Functionals/ana_btflux...
    CPP_options:       TXLA2, ANA_BPFLUX, ANA_BSFLUX, ANA_BTFLUX, ANA_NUDGCOE...
    NCO:               netCDF Operators version 4.7.6-alpha04 (Homepage = htt...

Note that the preprocessing code sets up a ROMS dataset so that it can be used with cf-xarray. For example, axis and coordinate variables have been identified:

ds.cf

Coordinates:
- CF Axes: * X: ['xi_rho']
           * Y: ['eta_rho']
           * Z: ['s_rho']
           * T: ['ocean_time']

- CF Coordinates:   longitude: ['lon_rho']
                    latitude: ['lat_rho']
                    vertical: ['z_rho']
                  * time: ['ocean_time']

- Cell Measures:   area, volume: n/a

- Standard Names:   latitude: ['lat_rho']
                    longitude: ['lon_rho']
                  * ocean_s_coordinate_g2: ['s_rho']
                  * time: ['ocean_time']

- Bounds:   n/a

Data Variables:
- Cell Measures:   area, volume: n/a

- Standard Names:   sea_surface_elevation: ['zeta']
                    sea_water_practical_salinity: ['salt']

- Bounds:   n/a

Variable to use, by standard_name:

zeta = 'sea_surface_elevation'
salt = 'sea_water_practical_salinity'

Subset numerical domain#

Use .em.sub_grid() to narrow the model area down using a bounding box on a Dataset which respects the horizontal structure of multiple grids. Currently only is relevant for ROMS models but will run on any ROMS model or models with a single longitude/latitude set of coordinates.

Resulting area of model will not be exactly the bounding box if the domain is curvilinear.

ds_sub = ds.em.sub_grid([-92, 27, -90, 29])
ds_sub.cf[zeta].cf.isel(T=0).cf.plot(x='longitude', y='latitude')

<matplotlib.collections.QuadMesh at 0x7fbfa182a7c0>

_images/ebc5a97dc4dc80c89c467dbd7f71ac35f878e211b8d93278f21e8a4a24503d84.png

Note that this is an unusual ROMS Dataset because it has only one horizontal grid.

ds_sub

<xarray.Dataset>
Dimensions:     (ocean_time: 2, s_rho: 30, eta_rho: 100, xi_rho: 144)
Coordinates:
    Cs_r        (s_rho) float64 dask.array<chunksize=(30,), meta=np.ndarray>
    lon_rho     (eta_rho, xi_rho) float64 dask.array<chunksize=(100, 144), meta=np.ndarray>
    hc          float64 20.0
    h           (eta_rho, xi_rho) float64 dask.array<chunksize=(100, 144), meta=np.ndarray>
    lat_rho     (eta_rho, xi_rho) float64 dask.array<chunksize=(100, 144), meta=np.ndarray>
    Vtransform  int32 2
  * ocean_time  (ocean_time) datetime64[ns] 2001-08-01 2001-08-08
  * s_rho       (s_rho) float64 -0.9833 -0.95 -0.9167 ... -0.05 -0.01667
  * xi_rho      (xi_rho) int64 98 99 100 101 102 103 ... 236 237 238 239 240 241
  * eta_rho     (eta_rho) int64 0 1 2 3 4 5 6 7 8 ... 91 92 93 94 95 96 97 98 99
    z_rho       (ocean_time, s_rho, eta_rho, xi_rho) float64 dask.array<chunksize=(1, 30, 100, 144), meta=np.ndarray>
Data variables:
    salt        (ocean_time, s_rho, eta_rho, xi_rho) float32 dask.array<chunksize=(1, 30, 100, 144), meta=np.ndarray>
    zeta        (ocean_time, eta_rho, xi_rho) float32 dask.array<chunksize=(1, 100, 144), meta=np.ndarray>
Attributes: (12/34)
    file:              ../output_20yr_obc/2001/ocean_his_0015.nc
    format:            netCDF-4/HDF5 file
    Conventions:       CF-1.4
    type:              ROMS/TOMS history file
    title:             TXLA ROMS hindcast run with dyes and oxygen
    rst_file:          ../output_20yr_obc/2001/ocean_rst.nc
    ...                ...
    compiler_flags:    -heap-arrays -fp-model fast -mt_mpi -ip -O3 -msse2 -free
    tiling:            010x012
    history:           Tue Jul 24 11:04:43 2018: /opt/nco/ncks -D 4 -t 8 /cop...
    ana_file:          /home/d.kobashi/TXLA_ROMS_reana/Functionals/ana_btflux...
    CPP_options:       TXLA2, ANA_BPFLUX, ANA_BSFLUX, ANA_BTFLUX, ANA_NUDGCOE...
    NCO:               netCDF Operators version 4.7.6-alpha04 (Homepage = htt...

Subset to a horizontal box#

Use .em.sub_bbox() to narrow the model area down using a bounding box on either a Dataset or DataArray. There is no expectation of multiple horizontal grids having the “correct” relationship to each other.

Dataset#

In the case of a Dataset, all map-based variables are filtered using the same bounding box.

ds.em.sub_bbox([-92, 27, -90, 29], drop=True).cf[salt].cf.isel(T=0).cf.sel(Z=0, method='nearest')

<xarray.DataArray 'salt' (eta_rho: 100, xi_rho: 144)>
dask.array<getitem, shape=(100, 144), dtype=float32, chunksize=(100, 144), chunktype=numpy.ndarray>
Coordinates:
    ocean_time  datetime64[ns] 2001-08-01
    s_rho       float64 -0.01667
  * xi_rho      (xi_rho) int64 98 99 100 101 102 103 ... 236 237 238 239 240 241
  * eta_rho     (eta_rho) int64 0 1 2 3 4 5 6 7 8 ... 91 92 93 94 95 96 97 98 99
Attributes:
    long_name:      salinity
    time:           ocean_time
    field:          salinity, scalar, series
    standard_name:  sea_water_practical_salinity

DataArray#

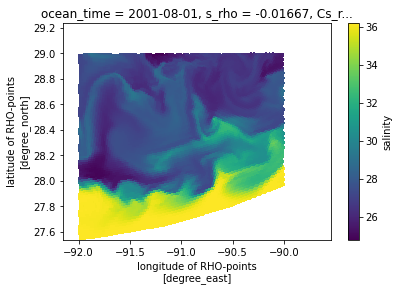

ds.cf[salt].em.sub_bbox([-92, 27, -90, 29], drop=True).cf.isel(T=0, Z=-1).cf.plot(x='longitude', y='latitude')

<matplotlib.collections.QuadMesh at 0x7fbf81ce3fd0>

_images/919bb51938a6e050af9c469e1ed17002857b7653d3d14c5e51f92529af80b9e0.png

grid point (interpolation and selecting nearest)#

Interpolate to a single existing horizontal grid point (and any additional depth and time values for that location) and compare it with method selecting the nearest point to demonstrate we get the same value.

%%time

varname = salt

# Set up a single lon/lat location
j, i = 50, 10
longitude = float(ds.cf[varname].cf['longitude'][j,i])
latitude = float(ds.cf[varname].cf['latitude'][j,i])

# Interpolation
da_out = ds.cf[varname].em.interp2d(longitude, latitude)

# Selection of nearest location in 2D
da_check = ds.cf[varname].em.sel2dcf(longitude=longitude, latitude=latitude).squeeze()

assert np.allclose(da_out, da_check)

CPU times: user 4.18 s, sys: 164 ms, total: 4.34 s
Wall time: 4.36 s

You could also select a time and/or depth index or interpolate in time and/or depth at the same time:

# Select time index and depth index
ds.cf[varname].em.interp2d(longitude, latitude, iT=0, iZ=0)

<xarray.DataArray 'salt' ()>
dask.array<getitem, shape=(), dtype=float32, chunksize=(), chunktype=numpy.ndarray>
Coordinates:
    ocean_time  datetime64[ns] 2001-08-01
    s_rho       float64 -0.9833
    Cs_r        float64 dask.array<chunksize=(), meta=np.ndarray>
    hc          float64 20.0
    Vtransform  int32 2
    lat         float64 28.23
    lon         float64 -93.59
    z_rho       float64 dask.array<chunksize=(), meta=np.ndarray>
Attributes:
    long_name:      salinity
    time:           ocean_time
    field:          salinity, scalar, series
    standard_name:  sea_water_practical_salinity

ds.cf[varname].cf

Coordinates:
- CF Axes: * X: ['xi_rho']
           * Y: ['eta_rho']
           * Z: ['s_rho']
           * T: ['ocean_time']

- CF Coordinates:   longitude: ['lon_rho']
                    latitude: ['lat_rho']
                    vertical: ['z_rho']
                  * time: ['ocean_time']

- Cell Measures:   area, volume: n/a

- Standard Names:   latitude: ['lat_rho']
                    longitude: ['lon_rho']
                  * ocean_s_coordinate_g2: ['s_rho']
                  * time: ['ocean_time']

- Bounds:   n/a

# Interpolate to time value and depth value
ds.cf[varname].em.interp2d(longitude, latitude, T=ds.cf['T'][0], Z=-10)

<xarray.DataArray 'salt' ()>
dask.array<dask_aware_interpnd, shape=(), dtype=float32, chunksize=(), chunktype=numpy.ndarray>
Coordinates:
    s_rho       float64 -0.4475
    Cs_r        float64 dask.array<chunksize=(), meta=np.ndarray>
    hc          float64 20.0
    Vtransform  int32 2
    lat         float64 28.23
    lon         float64 -93.59
    ocean_time  datetime64[ns] 2001-08-01
    z_rho       int64 -10
Attributes:
    long_name:      salinity
    time:           ocean_time
    field:          salinity, scalar, series
    standard_name:  sea_water_practical_salinity

The interpolation is faster the second time the regridder is used — it is saved by the extract_model accessor and reused if the lon/lat locations to be interpolated to are the same. Here we interpolate to salinity and it is faster than it was the first time it was used for interpolation the sea surface elevation.

%%time

varname = zeta

# Set up a single lon/lat location
j, i = 50, 10
longitude = float(ds.cf[varname].cf['longitude'][j,i])
latitude = float(ds.cf[varname].cf['latitude'][j,i])

# Interpolation
da_out = ds.cf[varname].em.interp2d(longitude, latitude)

# Selection of nearest location in 2D
da_check = ds.cf[varname].em.sel2dcf(longitude=longitude, latitude=latitude).squeeze()

assert np.allclose(da_out, da_check)

CPU times: user 956 ms, sys: 34.3 ms, total: 990 ms
Wall time: 1 s

not grid point#

inside domain (interpolation and selecting nearest)#

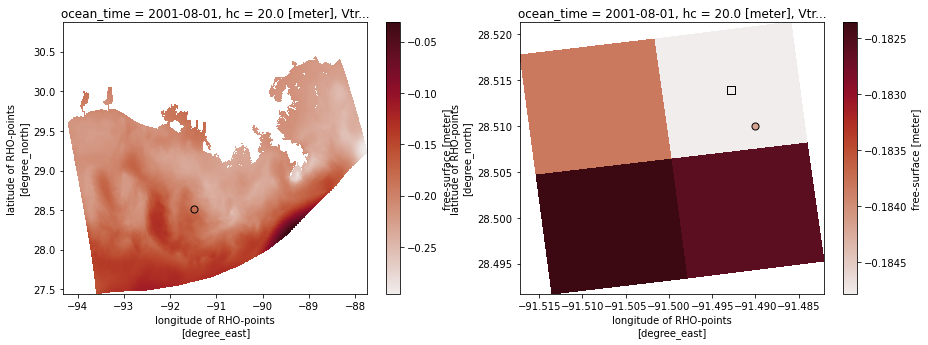

For a selected location that is not a grid point (so we can’t check it exactly), we show here both interpolating to that location horizontally and selecting the nearest point to that location.

The square in the right hand side plot shows the nearest point selected using .em.sel2d() and the circle shows the interpolated value at the exact selected location using .em.interp2d().

varname = zeta

# sel
longitude = -91.49
latitude = 28.510

# isel
iZ = None
iT = 0
isel = dict(T=iT)

# Interpolation
da_out = ds.cf[varname].em.interp2d(longitude, latitude, iT=iT, iZ=iZ)

# Selection of nearest location in 2D
da_sel = ds.cf[varname].em.sel2dcf(longitude=longitude, latitude=latitude, distances_name="distance").cf.isel(T=iT).squeeze()

# Plot
cmap = ds.cf[varname].cmo.seq
dacheck = ds.cf[varname].cf.isel(isel)
fig, axes = plt.subplots(1, 2, figsize=(15,5))

dacheck.cmo.cfplot(ax=axes[0], x='longitude', y='latitude')
axes[0].scatter(da_out.cf['longitude'], da_out.cf['latitude'], s=50, c=da_out,
           vmin=dacheck.min().values, vmax=dacheck.max().values, cmap=cmap, edgecolors='k')

# make smaller area of model to show
# want model output only within the box defined by these lat/lon values
dacheck_min = dacheck.em.sub_bbox([-91.52, 28.49, -91.49, 28.525], drop=True)
dacheck_min.cmo.cfplot(ax=axes[1], x='longitude', y='latitude')
# interpolation
axes[1].scatter(da_out.cf['longitude'], da_out.cf['latitude'], s=50, c=da_out,
           vmin=dacheck_min.min().values, vmax=dacheck_min.max().values,
                cmap=cmap, edgecolors='k')
# selection
axes[1].scatter(da_sel.cf['longitude'], da_sel.cf['latitude'], s=50, c=da_sel.cf[varname],
           vmin=dacheck_min.min().values, vmax=dacheck_min.max().values,
                cmap=cmap, edgecolors='k', marker='s')

<matplotlib.collections.PathCollection at 0x7fbfc254cb50>

_images/c4e9e0515bf62d44e8ef198dcdc78b030f43bb9b9be3d505fbf39d1b2defde6a.png

We input the extra keyword argument distances_name into the call ds.cf[varname].em.sel2dcf in order to also return the distance between the requested location and the returned model location. This value is shown here in km:

da_sel["distance"]

<xarray.DataArray 'distance' ()>
array(0.51134)
Coordinates:
    ocean_time  datetime64[ns] 2001-08-01
    xi_rho      int64 136
    eta_rho     int64 54
    lon_rho     float64 dask.array<chunksize=(), meta=np.ndarray>
    hc          float64 20.0
    h           float64 dask.array<chunksize=(), meta=np.ndarray>
    Vtransform  int32 2
    lat_rho     float64 dask.array<chunksize=(), meta=np.ndarray>
Attributes:
    units:    km

outside domain#

Don’t extrapolate

This is commented out since it purposefully raises an error:

ValueError: Longitude outside of available domain. Use extrap=True to extrapolate.

# varname = zeta

# # sel
# longitude = -166
# latitude = 48
# sel = dict(longitude=longitude, latitude=latitude)

# # isel
# iZ = 0
# iT = 0
# isel = dict(Z=iZ, T=iT)

# da_out = ds.cf[varname].em.interp2d(longitude, latitude, iT=iT, iZ=iZ, extrap=False)

# da_out

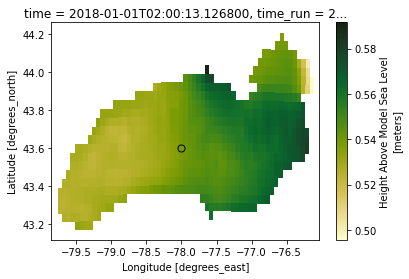

Extrapolate

varname = zeta

# sel
longitude = -89
latitude = 28.3
sel = dict(longitude=longitude, latitude=latitude)

# isel
iZ = None
iT = 0
isel = dict(T=iT)

da_out = ds.cf[varname].em.interp2d(longitude, latitude, iT=iT, iZ=iZ, extrap=True)

# plot
cmap = ds.cf[varname].cmo.seq
dacheck = ds.cf[varname].cf.isel(isel)
fig, ax = plt.subplots(1,1)
dacheck.cmo.cfplot(ax=ax, x='longitude', y='latitude')
ax.scatter(da_out.cf['longitude'], da_out.cf['latitude'], s=50, c=da_out,
           vmin=dacheck.min().values, vmax=dacheck.max().values, cmap=cmap, edgecolors='k')

<matplotlib.collections.PathCollection at 0x7fbfa1e57700>

_images/f2673a93c83148d17797b0042ac75259bf8e12a4e4f7e04afb8f4d65822dec54.png

points (locstream, interpolation)#

Interpolate to unstructured pairs of lon/lat locations instead of grids of lon/lat locations, using locstream. Choose grid points so that we can check the accuracy of the results.

varname = zeta

# sel
# this creates 12 pairs of lon/lat points that
# align with grid points so we can check the
# interpolation
longitude = ds.cf[varname].cf['longitude'].isel(eta_rho=60, xi_rho=slice(None,None,10))
latitude = ds.cf[varname].cf['latitude'].isel(eta_rho=60, xi_rho=slice(None,None,10))
sel = dict(X=longitude.xi_rho, Y=longitude.eta_rho)

# isel
iZ = None
iT = 0
isel = dict(T=iT)

da_out = ds.cf[varname].em.interp2d(longitude, latitude, iT=iT, iZ=iZ, locstream=True)

# check
da_check = ds.cf[varname].cf.isel(isel).cf.sel(sel)

assert np.allclose(da_out, da_check, equal_nan=True)

It is not currently possible to interpolate in depth with both more than one time and location.

This cell is commented out because it purposefully returns an error:

NotImplementedError: Currently it is not possible to interpolate in depth with more than 1 other (time) dimension.

# ds.cf[salt].em.interp2d(longitude, latitude, Z=-10, locstream=True)

grid of known locations (interpolation)#

varname = zeta

# sel
longitude = ds.cf[varname].cf['longitude'][:-50:20,:-200:100]
latitude = ds.cf[varname].cf['latitude'][:-50:20,:-200:100]
sel = dict(X=longitude.xi_rho, Y=longitude.eta_rho)

# isel
iZ = None
iT = 0
isel = dict(T=iT)

da_out = ds.cf[varname].em.interp2d(longitude, latitude, iT=iT, iZ=iZ, locstream=False)

# check
da_check = ds.cf[varname].cf.sel(sel).cf.isel(isel)

assert np.allclose(da_out, da_check)

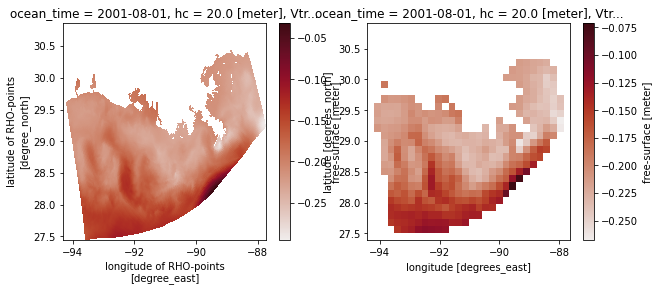

grid of new locations (interpolation, regridding)#

varname = zeta

# sel
longitude = np.linspace(ds.cf[varname].cf['longitude'].min(), ds.cf[varname].cf['longitude'].max(), 30)
latitude = np.linspace(ds.cf[varname].cf['latitude'].min(), ds.cf[varname].cf['latitude'].max(), 30)

# isel
iZ = None
iT = 0
isel = dict(T=iT)

da_out = ds.cf[varname].em.interp2d(longitude, latitude, iT=iT, iZ=iZ, locstream=False, extrap=False, extrap_val=np.nan)

# plot
cmap = cmo.delta
dacheck = ds.cf[varname].cf.isel(isel)

fig, axes = plt.subplots(1,2, figsize=(10,4))
dacheck.cmo.cfplot(ax=axes[0], x='longitude', y='latitude')
da_out.cmo.cfplot(ax=axes[1], x='longitude', y='latitude')

<matplotlib.collections.QuadMesh at 0x7fbf8254f970>

_images/86cd3dde0f855eeee7ee402e1efb1e63d7633f23477b40e01eb4bcf557884e25.png

Generically access model output#

ROMS#

Subset numerical domain#

Subset to a horizontal box#

Dataset#

DataArray#

grid point (interpolation and selecting nearest)#

not grid point#

inside domain (interpolation and selecting nearest)#

outside domain#

points (locstream, interpolation)#

grid of known locations (interpolation)#

grid of new locations (interpolation, regridding)#

HYCOM#

grid point#

not grid point#

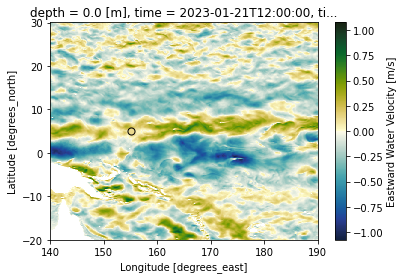

inside domain#

outside domain#

points (locstream)#

grid of known locations#

grid of new locations#

POM#

grid point#

not grid point#

inside domain#

points (locstream)#

grid of new locations#
